Fixing "Dropped Calls" Issues on Long, High Bridges

Switching to VEGA High Gain Narrow Beam Antenna is the Solution

Users on long bridges all over the world have a well-known common cellular Quality-of-Service problem; in many cases the call is dropped at some point in the middle of the bridge.

Usually, this is since the high, central section of the bridge is exposed to many surrounding BTSs resulting in multiple strong signals being received by the handset. In such a case, creating a dominant signal which is significantly higher than the other carriers are the solution.

Installing a regular wide-angle antenna to cover the bridge is the wrong solution. Although the signal over the bridge might be high, the wide spread beam will cause interferences on the other bank of the river. The correct solution is to install a very narrow beam, high gain antenna for this application thus minimizing interferences on the opposite bank.

Installing a single VEGA antenna with 5⁰ beam width on one end of the bridge creates a dominant signal enabling high quality, no dropped call service all along the bridge and minimum added interference.

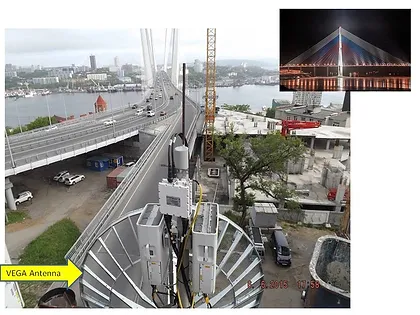

This solution was implemented on many bridges worldwide. The one shown below is the newly built bridge in Vladivostok, Far Eastern Russia. This bridge is about 2km long and 65m high above water level which explains the many interfering carriers causing the QoS problem.

As shown herein, 1800 and 2100 MHz carriers were multiplexed into the VEGA antenna for customer’s best capacity and service. Drive test team reported excellent QoS.
