Multi-Beam antennas - Making the most of
available Tower Space

VEGA multi-beam antennas retain VEGA antennas extremely high gain
advantages combined with multi-beam feature increasing both the
capacity and coverage of each tower.

VEGA Multi-Beam

The new VEGA multibeam cross-polarized antennas enable the RAN P&O expert to double or triple capacity, increase coverage range, and double or triple the number of sectors per antenna while improving user experience.

With a gain of up to +29dBi, VEGA very high gain narrow beam antennas are very different from common panel antennas. The same can be said about the new VEGA multi- beam antennas which are combining both very high gain and multi-beam performance. The same demand for more and faster data that is energizing the whole cellular industry applies to coverage areas such as remote communities, long sections of highways and railways and difficult terrain areas where VEGA antennas have proved to be the optimal solution.

Another advantage is due to VEGA antennas exceptionally narrow beam and beam edge sharp fall-off. Spatial Carrier Aggregation multiplexing shows even better QOS as the overlapping coverage between the beams is minimal in contrary to common panel antennas.

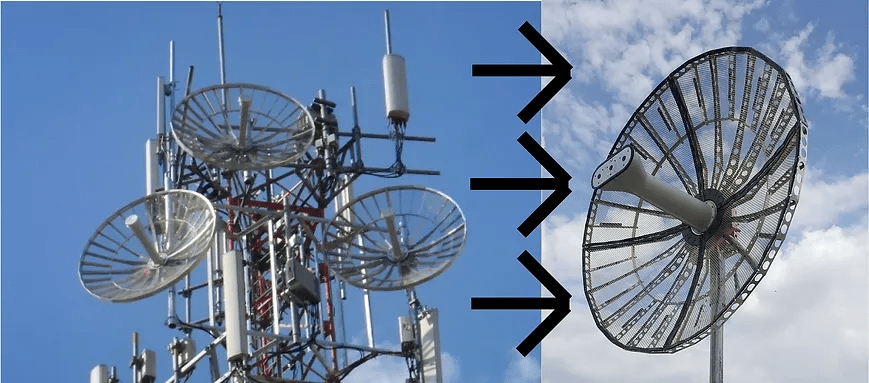

VEGA multibeam MIMO antennas enable you to double or triple the number of sectors at your disposal without adding to the number of antennas on a tower thus neutralizing the always pressing technical and financial issue of tower space. MIMO performance is further improved by VEGA's dual polarization feature whereby each beam is made up of two cross polarized beams (6 connectors total for 3 beams and 4 connectors for 2 beams).

Finally, the basic difference between the VEGA multibeam antennas and common multibeam panel antennas remain in VEGA's distinctly very high gain and very narrow spot beam characteristics.

A Data Sheet is worth a thousand words. Have a quick look at the antenna-range measured results of these 2m (CP) and 1m (CMP) new VEGA additions to your RAN P&O toolbox.

For Three-beam VEGA antenna covering 1710-2690 MHz data sheet see:
VEGA CP32WB Data Sheet

For Two-beam VEGA Mx antenna covering 1710-2690 MHz Data sheet see:
VEGA Mx CMP22WB Data Sheet
